History behind the firearm that inspired the Gletcher TT33 Air Pistol

In 1930, the Revolutionary Military Council approved a resolution to test new small arms to replace its aging Nagant M1895 revolvers. During these tests, on 7 January 1931, the potential of a pistol designed by Fedor Tokarev was noted. A few weeks later, 1,000 TT-30s were ordered for troop trials, and the pistol was adopted for service in the Red Army. The TT-30 was manufactured between 1930 and 1936, with about 93,000 being produced.

But even as the TT-30 was being put into production, design changes were made to simplify manufacturing. Minor changes to the barrel, disconnector, trigger and frame were implemented, the most notable ones being the omission of the removable hammer assembly and changes to the full-circumference locking lugs. This redesigned pistol was the TT-33. Most TT-33s were issued to officers. The TT-33 was widely used by Soviet troops during World War II, but did not completely replace the Nagant.

Wehrmacht TT-33's

The Wehrmacht captured a fair number of TT-33s and issued them to units under the Pistole 615(r) designation. This was made possible by the fact that Russian 7.62 mm Model 1930 Type P cartridges were nearly identical to the German 7.63x25mm Mauser cartridge. Therefore, German ammunition could be used in captured Russian arms, but not vice versa. Due to much higher pressures, the Russian cartridges should never be used in the German Mauser pistols. Such use could be very dangerous.

Design Details

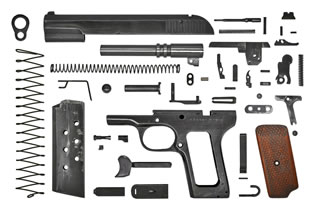

Externally, the TT-33 is very similar to John Browning's blowback operated FN Model 1903 semiautomatic pistol, and internally it uses Browning's short recoil tilting-barrel system from the M1911 pistol. In other areas the TT-33 differs more from Browning's designs and it employs a much simpler hammer/sear assembly than the M1911. This assembly is removable from the pistol as a modular unit and includes machined magazine feed lips preventing misfeeds when a damaged magazine was loaded into the magazine well. Soviet engineers made several alterations to make the mechanism easier to produce and maintain, most notably the simplifications of the barrel's locking lugs, allowing fewer machining steps. Some models use a captive recoil spring secured to the guide rod which does depend on the barrel bushing to hold it under tension.

7.62x25mm Cartridge

The TT-33 is chambered for the 7.62x25mm Tokarev cartridge, which was itself based on the similar 7.63x25mm Mauser cartridge used in the Mauser C96 pistol. The 7.62x25mm cartridge is powerful, has an extremely flat trajectory, and is capable of penetrating thick clothing and soft body armor. Able to withstand tremendous abuse, large numbers of the TT-33 were produced during World War II and well into the 1950s.

In modern times the robust TT-33 has been converted to many extremely powerful cartridges including .38 Super and 9x23mm Winchester. The TT-33 omitted a safety catch other than the half cock notch which rendered the trigger inoperable until the hammer was pulled back to full cock and then lowered manually to the half cock position. Many imported variants have manual safeties added, which vary greatly in placement and function.

International

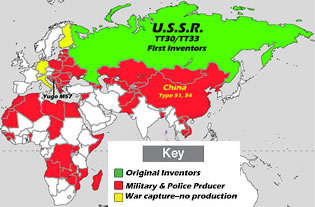

The TT-33 was eventually replaced by the 8-round, 9x18mm Makarov PM pistol in 1952. Production of the TT-33 in Russia ended in 1954, but copies (licensed or otherwise) were also made by other countries. At one time or another most communist or Soviet bloc countries made a variation of the TT-33 pistol.

Interarms marketed World War II-surplus Russian-made Tokarevs in Europe and the United States as the Phoenix. They had new wooden grips with a phoenix design on them and were overstamped INTERARMS on the barrel. Later gun laws banned their sale due to their lack of a safety.

Chinese 9mm Norinco

The Type 54 with manual safety The TT pistol was copied in China as the Type 51, Type 54, M20, and TU-90. Norinco, the People's Liberation Army's state armaments manufacturer in China, manufactured a commercial variant of the Tokarev pistol chambered in the more common 9x19mm Parabellum round, known as the Tokarev Model 213, as well as in the original 7.62x25mm caliber.

The 9mm model features a safety catch, which was absent on Russian-produced TT-33 handguns. Furthermore, the Model 213 features the thin slide grip grooves, as opposed to the original Russian wide-types. The 9mm model is featured with a magazine well block mounted in the rear of the magazine well to accept 9mm type magazines without frame modification. The Norinco model in current production is not available for sale in the United States due to import prohibitions on Chinese firearms, although older handguns of the Model 213 type imported in the 1980s and 1990s are common. 7.62x25mm ammo is also rather inexpensive and locally produced or imported from China, also made by Norinco.
