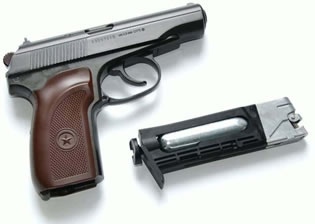

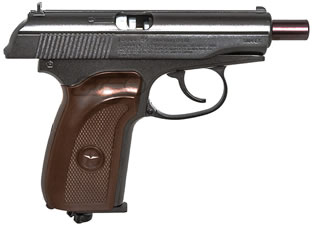

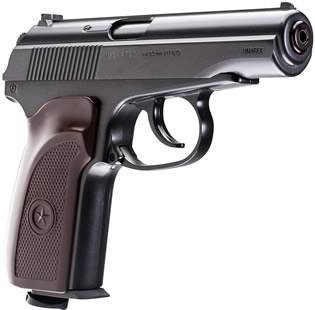

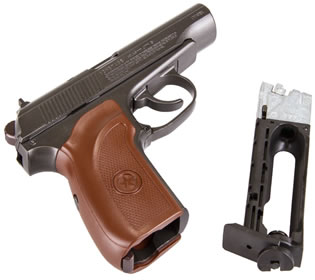

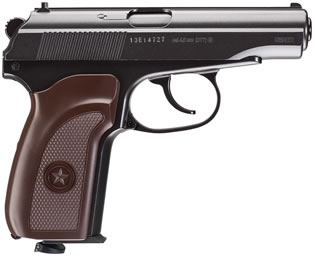

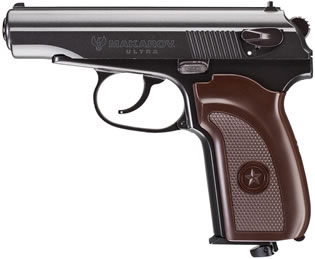

Additional Umarex Legends Makarov Ultra Photos

History behind the firearm that inspired the Umarex Makarov Ultra Air Pistol

The Makarov (Mock-ah-rahv) pistol or PM is a Russian semi-automatic pistol. Under the project leadership of Nikolay Fyodorovich Makarov, it became the Soviet Union's standard military and police side arm from 1951 to 1991.

Replacing the Tokarev TT33

Shortly after the Second World War, the Soviet Union reactivated its plans to replace the Tokarev TT33 self-loading pistols and Nagant M1895 revolvers. The adoption of the future AK assault rifle relegated the pistol to a light, handy self-defence weapon. Therefore, the TT30/33 was unsuited for such a role, as it was heavy, bulky, and possessed too little stopping power. What's more, the Tokarev pistols omitted a safety and magazines were deemed too easy to lose. As a result, in December 1945, two separate contests for a new service pistol were created, respectively for a 7.62mm and 9mm pistol. It was later judged that the new 9.2x18mm cartridge, designed by B.V. Semin, was the best round suited for the intended role. The lower pressures of the cartridge allowed practical straight blowback operation (reducing the cost and complexity of the weapon), while retaining low recoil and good stopping power.

Several engineers took part in the contest, including Korovin, Baryshev, Vojvodin, Simonov, Rakov, Klimov, Lobanov, Sevryugin and Makarov. Special emphasis was placed on safety, user-friendliness, accuracy, weight, and dimensions. After stringent handling, reliability, and other tests, Makarov's pistol, which was based on the German Walther PP, stood out from other designs through its sheer simplicity, excellent reliability, quick disassembly. and robustness. During April 1948, Makarov's pistol experienced 20 times fewer malfunctions than the competing Baryshev and Sevryugin counterparts, and had fewer parts. The pistol was therefore selected in 1949 for further development and optimization for mass production. Tooling was set up in the Izhevsk plant for production. After many major design changes and tweaks, the gun was formally adopted as the "Pistolet Makarova", or "PM" in 1951.

As the new standard issue sidearm of the USSR, the PM was issued to NCOs, police,special forces, and tank and air crews. It remained in wide front-line service with Soviet military and police until and beyond the end of the USSR in 1991. Variants of the pistol remain in production in Russia, China, and Bulgaria. In the U.S., surplus Soviet and East German military Makarovs are listed as eligible curio and relic items by the Bureau of Alcohol, Tobacco, Firearms and Explosives, because the countries of manufacture, the USSR and the GDR, no longer exist.

In 2003, the Makarov PM was formally replaced by the Yarygin PYa pistol in Russian service, although as of 2012, large numbers of Makarov PMs are still in Russian military and police service. The Makarov PM is still the service pistol of many Eastern European and former Soviet republics. North Korea and Vietnam also use Makarov PMs as standard-issue pistols.

The PM is a medium-size, straight-blowback-action, all-steel construction, frame-fixed barrel handgun. In blowback designs, the only force holding the slide closed is that of the recoil spring; upon firing, the barrel and slide do not have to unlock, as do locked-breech-design pistols. Blowback designs are simple and more accurate than designs using a recoiling, tilting, or articulated barrel, but they are limited practically by the weight of the slide. The 9.8mm cartridge is a practical cartridge in blowback-operated pistols; producing a respectable level of energy from a gun of moderate weight and size. The PM is heavy for its size by modern US commercial handgun standards, largely because in a blowback pistol, the heavy slide provides greater inertia to delay opening of the breech until internal pressures have fallen to a safe level. Other, more powerful cartridges have been used in blowback pistol designs, but the Makarov is widely regarded as particularly well balanced in its design elements.

Makarov Design

The general layout of the Makarov pistol is similar to that of the PP. However, designer Makarov and his team drastically simplified the construction of the pistol, improving reliability and reducing the part count to an astonishing 27, not including the magazine. This allowed considerable ease of manufacture and servicing. All of the individual parts of the PM have been optimised for mass production, robustness and interchangeability, partially thanks to captured German tooling, technology, and machinery.

The chrome-lined, 4-groove, 9.27mm caliber barrel is pressed and pinned to the frame through a precision-machined ring. The 7kg recoil spring wraps around and is guided by the barrel. The spring-loaded trigger guard is pivoted down and swung to either side on the frame, allowing removal of the slide. The front sight is integrally machined into the slide, and a 3-4mm wide textured strip is engraved on top of the slide in order to prevent aim-disturbing glare. The rear sight is dovetailed into the slide and multiple heights are available to adjust the impact point. The extractor is of an external spring-loaded type, and features a prominent flange preventing loss if a case should rupture. The breech face is deeply recessed in order to aid in extraction and ejection reliability. The stamped sheet steel slide-lock lever has a tail serving the purpose of ejector. The one-piece, wraparound bakelite or plastic grip is reinforced with steel inserts and has a detent inside the screw bushing preventing unscrewing during firing. The sheet-metal mainspring housed inside the grip panel powers the hammer in both the main and rebound stroke, the trigger and the disconnector, while its lower end is the heel and spring of the magazine catch. The sear spring also serves another function, powering the slide lock lever. Makarov pistol parts seldom break with normal usage, and are easily serviced using few tools.

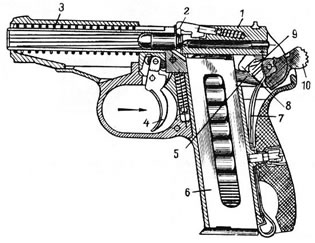

Makarov Operation

The PM has a free-floating triangular firing pin, with no firing pin spring or firing pin block. This theoretically allows the possibility of accidental firing if the pistol is dropped on its muzzle. Designer Nikolay Makarov thought the firing pin of insufficient mass to constitute a major danger. The Makarov is notable for the safety elements of its design, with a safety lever that simultaneously decocks and blocks the hammer from contacting the firing pin and returns the weapon to the long-trigger-pull mode of double action when that safety is engaged. When handled properly, the Makarov has excellent security against accidental discharge caused by inadvertent pressure on the trigger, e.g., in carrying the weapon in dense brush or re-holstering it. However, the heavy trigger weight in double-action mode decreases first-shot accuracy. The Bulgarian-model Makarov was approved for sale in the US state of California, having passed a state-mandated drop-safety test.

The PM has a DA/SA trigger mechanism. Engaging the manual safety simultaneously decocks the hammer if cocked, and prevents movement of slide, trigger and hammer. Both carrying with safety engaged, or with safety disengaged and hammer uncocked are considered safe. The DA trigger pull is heavy, requiring a strong squeeze, trading first shot accuracy for safety. Racking the slide, manually cocking the hammer or firing a cartridge all cock the hammer, setting the trigger for the next shot to single action. The PM is a semi-automatic firearm, therefore its rate of fire depends on how rapidly the shooter squeezes the trigger. Spent cartridges are ejected some 5.56 meters away to the shooter's right and rear. After firing the last round, the slide is held back by the slide stop lever/ejector. Magazines can be removed from the gun via the heel release, located on the bottom of the grip. After loading a fresh magazine, the slide can be released by pressing the lever on the left side of the frame or by racking the slide and releasing it; either action loads a cartridge into the chamber and readies the pistol to fire again.

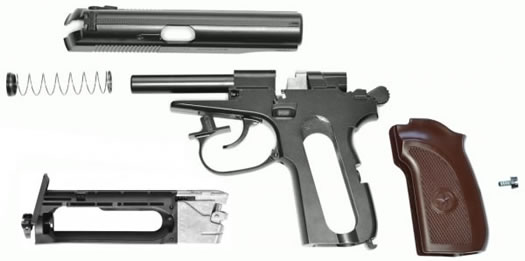

Field-Strip the Makarov

How to disassemble / field-strip Makarov PM pistol: 1) remove the magazine by pressing the magazine release at the base of the grip and pulling the magazine out; 2) check that the chamber is empty; 3) pull the trigger-guard downwards, then swing it to one side to lock in the open position; 4) pull the slide all the way back, then raise the rear of the slide to the top, and off the frame rails; 5) carefully ease the slide forward and off the barrel; 6) remove the return spring from the barrel.
Reassemble in reverse order.

Makarov Variants

The most widely known variant, the Makarov PMM (Pistolet Makarova Modernizirovannyy or Improved Makarov pistol), was a redesign of the original gun. In 1990, a group of engineers reworked the original Makarov, primarily by increasing the load for the cartridge. The result is a significant increase in muzzle velocity and generation of 25% more gas pressure. The PMM magazine holds 12 rounds, compared to the PM's eight rounds. Versions that held ten rounds were produced in greater quantities than the 12-round magazine. The Makarov PMM is able to use existing Makarov cartridges and has other minor modifications such as more ergonomic grip panels as well as flutes in the chamber that aid in extraction. As of 2015, it is - alongside MP-443 Grach - the service pistol of the Russian Airborne Troops.

PB Silent Pistol

The pistol uses an integral suppressor, which, unlike most similar systems, consists of two parts. This allows the pistol to be carried and kept concealed without the front part of the suppressor attached, and for the suppressor to be quickly deployed prior to use. The pistol may also be fired safely without the additional suppressor attachment, which may be important in critical situations. Without the front attachment, the pistol has a similar sound to the Makarov pistol. The detached suppressor is carried in a special compartment of the holster which was designed for the PB.

An experimental variant of the Makarov, the TKB-023, was designed with a polymer frame to reduce the weight and costs of the weapon. It had passed Soviet military trials but was never fielded, due to concerns about the polymer's capacities for long-term storage and use.

East European Makarov

Parkerized and dura-painted Makarov PM. Russian production. The Makarov was manufactured in several communist countries during the Cold War and afterwards; apart from the USSR itself, they were East Germany, Bulgaria, China, and post-unification Germany, which also found itself with several thousand ex-GDR Makarov pistols.

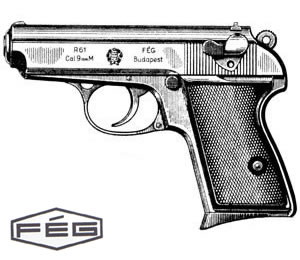

The countries like Poland and Hungary have developed their own handgun designs that use the 9.8mm round. Hungary developed the FEG PA-63 and Poland has developed the P-64 and the P-83 Wanad. While similar in operation (straight blowback), and chambered for the same round, these 9 mm Makarov firing pistols are often found labeled at gun shows by some US gun retailers as "Polish Makarovs" and "Hungarian Makarovs". Nonetheless, these similar designs are independent of the PM and have more in common with the Walther PP (which, in fact, was also a major influence on the original Russian Makarov).

A wide variety of aftermarket additions and replacements exist for the Makarov, including replacement barrels, custom grips, custom finishes and larger sights with various properties to replace the notoriously small originals. A scope/light mount exists for the Makarov but requires a threaded replacement barrel.
